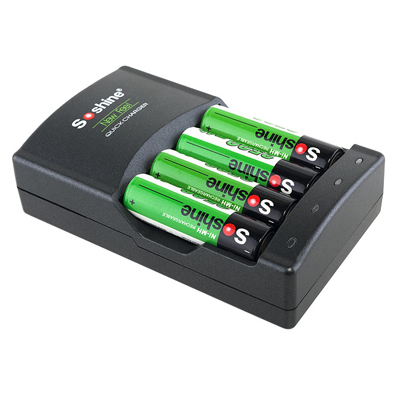

Model:SC-C5(II)

Product Detail:

Designation:Smart LCD Charger

Color: Black

Charge Capability:"AA" (1-4) "AAA" (1-4) "14500" (1-4)"10440"(1-4)

Shut off Mechanism:NiMH Battery Delta V Detection,LiFePo4 Battery CC/CV

Timer (12 hours)

ChargingCurrent:NiMH1-2 X AA 400mA 1-2 x AAA200mA,LiFePO4 1-2 x AA300mA,1-2 x AAA150mA

AC Adapter Input:100-240V AC 50/60Hz 0.20A

AC Adapter Output:DC 12V, 600-1000mA

Charger Input : DC 12V, 600-1000mA

DC 5V, 500-1000mA

Charging indication: LC-Display with 3 segment indicator

Weight(g): 150/186

Dimensions: (H x L x W) 95 x 71x 24 (mm)

USB Adaptor Type: American /European /UK

Rev Polarity Protection:Yes

Primary Battery Detection:Yes

Power source & USB charger for AA Ni-MH battery

Model:SC-EAA

Powers Cell phones and Mobile Devices anywhere anytime

Specification:

Input:DC 5.0V 1000mA

Output:USB 5.0V 500mA

AA 2.8V 500mA

LED indication:

Charge batteries

no battery ---turn off

charge--- blue LED flash

charge complate--- blue LED

charge devices--blue LED

finish---turn off

Li-ion 3.7V 26650 18650 16340 18350 18490 14500 10440

NiMH 1.2V C AA AAA

Specifications:

DC IN :5V 2000mA / 12V 1000mA /6V 5W (Photovoltaic solar panel)

Output:
500mA*2@ Li-ion 3.7V Battery
500mA*2@ Ni-MH 1.2V Battery

Charger mode:CC / CV (Li-ion Battery)/ DELTA V (Ni-MH Battery)

Soshine D/R20 Size Rechargeable Batteries NiMH 11000mAh

Ready to use:low self-discharge D rechargeable NiMH battery
No Memory Effects - NIMH cells does not require draining before a charge
Very long life time and can be recharged up to 1000 times.
Higher Current Capabilities - ideal for high drain applications
High quality D size 11000 mAh high capacity nickel hydride metal (Ni-MH) rechargeable batteries
Longer & More Consistent Runtime
Compatible with all chargers that support NiMH rechargeable batteries Features and Benefits
Can be rapidly charged with smart chargers and universal chargers
12 months warranty.

Specification:
Chemie:Ni-MH
Size: D R20
Model: RTU D11000
Nominal Capacity(mAh): 11000 mAh
Standard Charge: 16 hours @ 1100 mA
Rapid Charge: 2.5 hours @ 5500mA
Nominal Voltage: 1.2V
Dimension: Height 60.5 mm, Diameter 33 mm
Approx. Weight:168g

Soshine 18350 Rechargerable Li-ion battery:3.7V 1000mAh

High quality and durable
Provides excellent continuous power sources to your device
High energy density, long life battery
It is good both in low and high temperature perations
12 months warranty.

Specification:
Chemie:Li-ion
Size:18350
Model: 18350-3.7-1000
Nominal Capacity(mAh): 1000 mAh
Standard Charge: 16 hours @ 100mA
Rapid Charge: 2.5 hours @ 500mA
Nominal Voltage: 3.7V
Dimension: Height 35 mm, Diameter 18 mm
Approx. Weight:25g

Model:SC-V1(II)

Samsung 18650 2600mAh with Protected

Fetures:

Original Imported with Soshine Protected

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

Panasonic 18650 3400mAh with Protected

Futures:

Original Imported(Panasonic cell)

With Soshine anodeProtected

Quality Lithium Ionrechargeable cell

In Built Safety Circuitry

Maximum capacity andreliability

Positive nipple

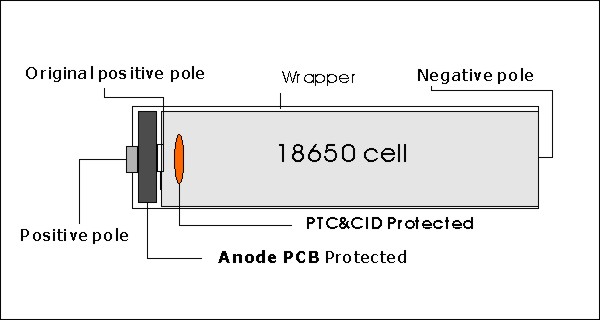

PCB Protected against:

Over charge (4.275±0.04V)

Over discharge(2.65±0.08V)

Over current (7-8A)

Specification:

Panasonic cell 3400mAh3.7V With Protected

System: Cylindrical Li-ionBattery

Specification: 18650

Nominal Voltage: 3.7V

Capacity: 3400mAh

Dimension:

Diameter-D-18.6 max

Height-H-68.5 max

Diameter-d-7.5

Primary technicalparameters

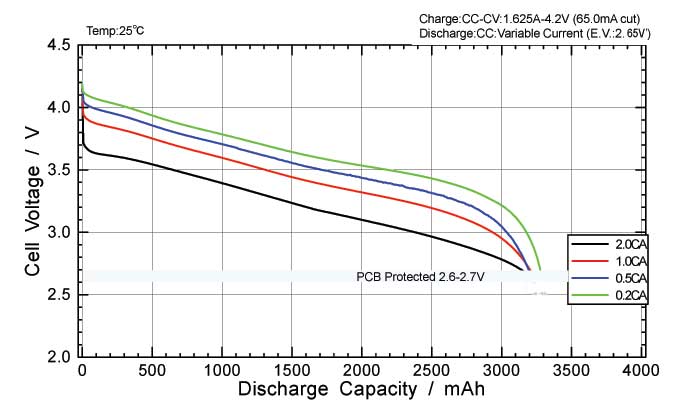

Discharge Rate Characteristics

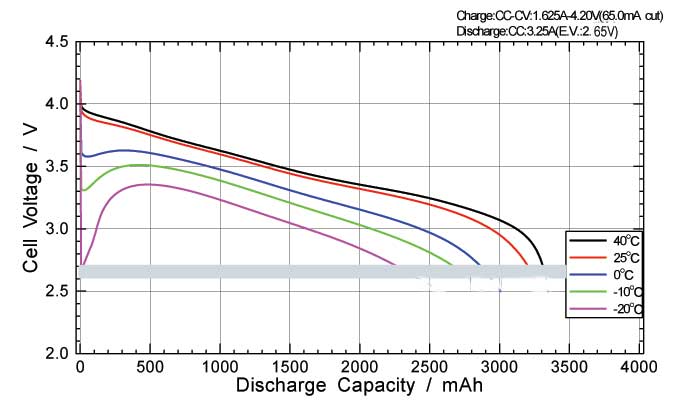

Discharge Temperature Characteristics

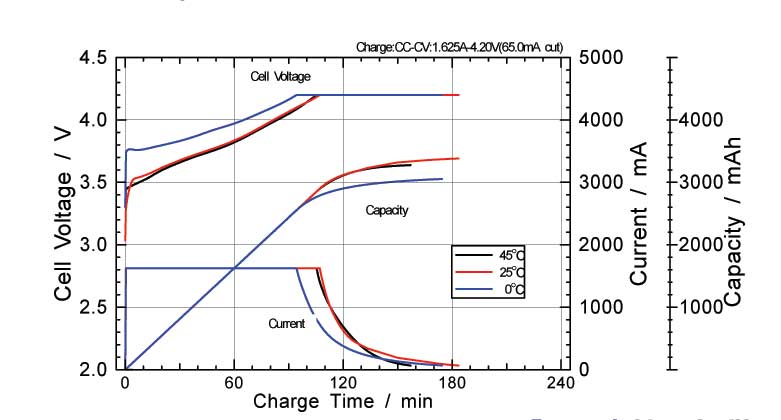

Charge Characteristics

Panasonic 18650 3400mAh with Protected

Futures:

Original Imported(Panasonic cell)

With Soshine anodeProtected

Quality Lithium Ionrechargeable cell

In Built Safety Circuitry

Maximum capacity andreliability

Positive nipple

Panasonic 18650 3100mAh with Protected

etures:

Original Imported with Soshine Protected

Quality Lithium Ion rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

PCB Protected against:

Specification:

Panasonic cell 3100mAh 3.7V With Protected

System: Cylindrical Li-ion Battery

Specification: 18650

Nominal Voltage: 3.7V

Capcity: 3100mAh

Dimension:

Diameter-d-7.5

Panasonic 18650 3100mAh with Protected

Fetures:

Original Imported with Soshine Protected

Quality Lithium Ion rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

PCB Protected against:

Specification:

Panasonic cell 3100mAh 3.7V With Protected

System: Cylindrical Li-ion Battery

Specification: 18650

Nominal Voltage: 3.7V

Capcity: 3100mAh

Dimension:

Diameter-d-7.5

SOSHINE Brand 18650 Li-ion Protected Battery: 3400mAh 3.7V

Model: 18650P-3.7-3400

System: Cylindrical Li-ion Battery

Specification: 18650

Nominal Voltage: 3.7V

Capacity: 3400mAh

Dimension:

Diameter-D-18.6 max

Height-H-68.3 max

Diameter-d-7.5

Weight approx: 129g (2pks)

Quality Lithium Ion rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

PCB Protected against:
Over charge(4. 275±0.04V)

Over discharge(2.65±0.08V)

Over current (short circuit)(7-8A)

Volt: 1.2
Capacity: 2600
Chemie: Ni-MH
IEC: HR06
Size: AA

Weight:165g/215g

This ready to use battery not only holds its charge up to a year but can be used right away.
- Use out of the box
- Holds its charge up to a year
- Up to 6X more photos
- Saves money by recharging
- No harmful chemicals like lead and cadmium

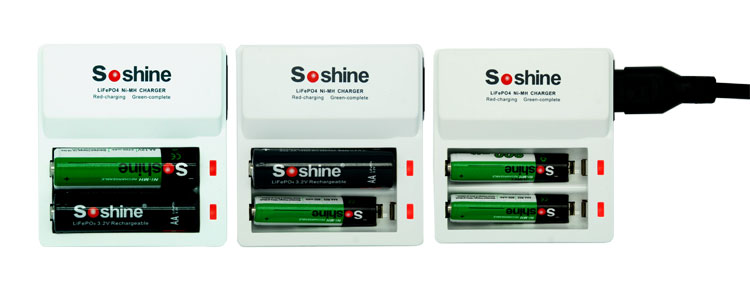

Model:SC-F7

Specifications:

Input: AC 90-260VAC, 50/60Hz
Output:
LiFePO4 3.2V 14500 400mA*1 400mA*2
LiFePO4 3.2V 10440 200mA*1 200mA*2
Ni-MH AA 1.2V 500mA*1 500mA*2
Ni-MH AAA 1.2V 250mA*1 250mA*2
Charger mode: CC/CV (LiFePO4 Battery) /DELTA V ( Ni-MH Battery)
Color: white
Size(mm): L70x W65 x H27mm
Weight :138/178g

Charge for 1-2PCS Ni-MH AA/AAA or LiFePO4 14500 10440 Battery

2 LED display

Automatic 1.2V/3.2V battery pack voltage and polarity detection
Quick safe
Auto alert indication for worse battery pack and bad battery

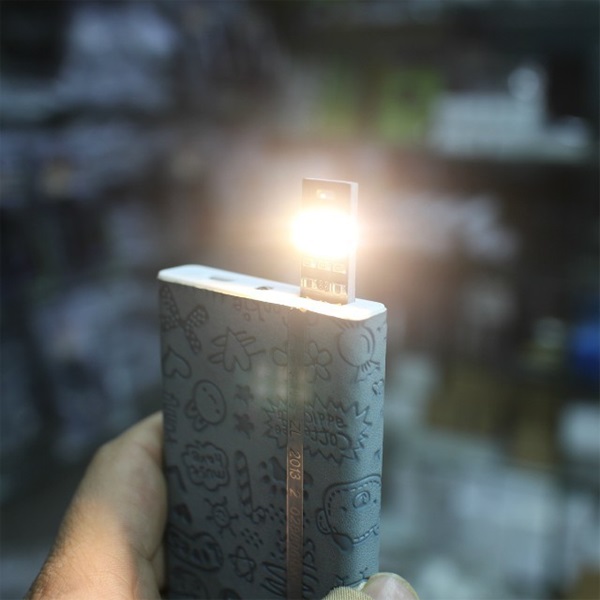

Portable USB Mini LED Night Light

Light-controlled LED Night Light(

Weight:12g

Mini LED night light, good for camping, desktop lighting
Power less than 0.6W,LED, low heat
Portable designed, fits neatly in your pocket or purse, or used as a keychain
Compatible with all standard USB device, power bank, mobile charger, computer, laptop...

Volt: 1.2
Capacity: 2200
Chemie: Ni-MH
IEC: HR06
Size: AA

Weight:165g/215g

This ready to use battery not only holds its charge up to a year but can be used right away.
- Use out of the box
- Holds its charge up to a year
- Up to 6X more photos
- Saves money by recharging
- No harmful chemicals like lead and cadmium

Volt: 1.2
Capacity: 1000MAH
Chemie: Ni-MH
IEC: HR3
Size: AAA

Weight:50g/90g

This ready to use battery not only holds its charge up to a year but can be used right away.
- Use out of the box
- Holds its charge up to a year
- Up to 6X more photos
- Saves money by recharging
- No harmful chemicals like lead and cadmium

Model:SC-S7

Features:

Precision end-of-charge voltage detection
Floating-charge maintains battery in full charge

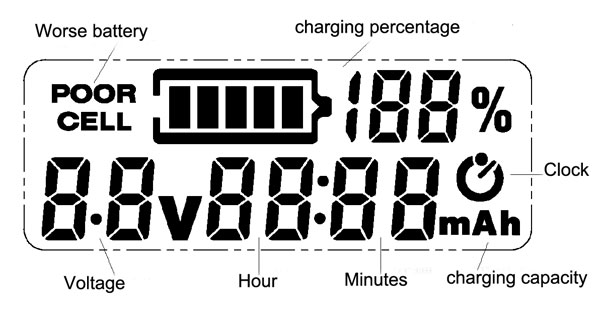

LCD displays for multi-information, voltage ,time ,charging percentage ,charging capacity ,worse battery and bad battery

Metal plates for charging connection can easy adjust for many different type battery cell
Automatic 3.7V/1.2V battery cell voltage and polarity detection
Over Charging timeout protection
Auto alert indication for worse battery cell and bad battery cell

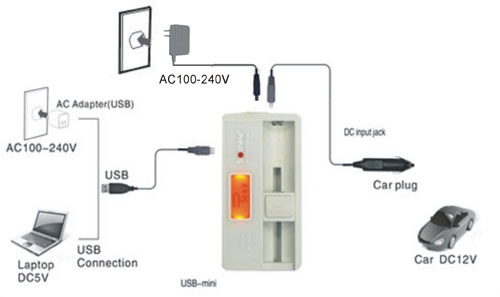

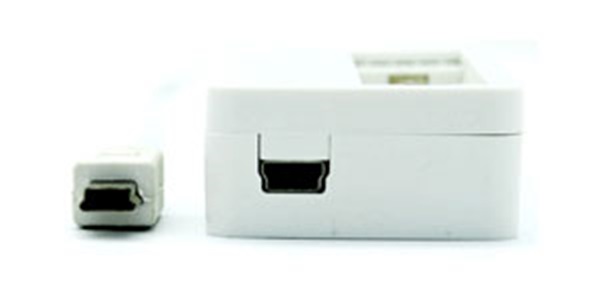

Power input can use DC12V or Mini USB DC5V for charging
Auto active function for Lithium battery cell open (0 Voltage)

Specifications:

DC IN :5V 1A / 12V 600mA

Output:
1000mA@ Lion 3.7V Battery
1000mA@ Ni-MH 1.2V Battery
Charger mode:CC / CV (Li-ion Battery)/ DELTA V (Ni-MH Battery)
Colour: white
Size(mm): L95x W48 x H22mm
Weight(g): 177/213

The intelligent charger can connect the power from supplied AC power adaptor or adaptor with 5V DC USB output or DC car cigarette lighter adaptor for charging, after power on, LCD display shows『Stby』characters, the charger is on standby mode and can insert a rechargeable Li-Ion battery or NiMH/NiCd rechargeable battery cell for charging.

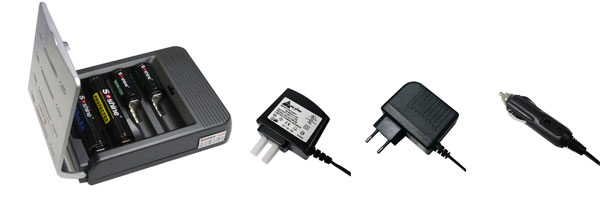

Model:SC-S1 mix III

Adapter:
- Input: AC adapter 100-240VAC,50/60Hz
- Output:12VDC - 1500mA
- DC car adapter :12V

Weight(g): 325/415

Using an adapter that does not meet these specifications could damage the charger or the adaptor

Charger:
- Li-ion 18650 18500 - charging current =1000mA*1, 1000mA*2

- Li-ion 16340 18650 18500 10440 17335 RCR123- charging current =300mA*1, 300mA*2
- End-of-charge voltage detection assures the safe and full charge any time
- Short-circuit protection
- Over voltage cut-off protection --- prevents damage to your battery due to over voltage(4.3V)
- Complete individual channels ------ convenience; prevent batteries charge each other
- Charge Method :CC/CV --------------charge battery fully and quickly
- Reverse polarity protection -------- prevent damage to your battery and charger
- Time control ------------------------- 4 individual clocks,after charge 8 hour, the power cut down
- Temperature control ---------------- temperature >60 degree, the power cut down

- Battery reset---------------------------make short circuit protection battery to reset

4 LED indicate:
Red on ------------------------------------Battery Charging

Green flash ------------------------------Charge 80%-90% complete
Green on ---------------------------------Charge 90%-100% complete
Turn off -----------------------------------Stand by without battery in compartment
Loose connections (replace battery);
Polarity reversed (load the battery into charger in right side)
Low voltage less than 2V
Red-Green flash (after 5min) ----------Non rechargeable Li-ion battery like Lithium,Ni-MH ,Ni-Cd, Alkaline
Li-ion battery--Low voltage between 2-3V
Temperature >60 degree

Instructions for use:

-Insert the rechargeable Li-ion battery into the battery compartment
-Make correct contact for polarity (+ and -) according to the sign in the battery compartment

When using AC adaptor:
Connect the supplied AC adaptors barrel plug into jack on the back of the charger. Plug the AC adaptor into any available 100-240VAC outlet.
When using in a vehicle-DC car adaptor:
Connect the supplied DC car adaptors barrel plug into the charges DC input jack. Plug the large end of the cord into the 12V car lighter power port
-The Red LED will glow to indicate the proper charging. After the battery is fully charged, the red LED will turn off and green LED will light on indicating the charged battery is ready for use.
-Unplug the charger and remove from the charger when not in use.

Power supply:

Protect the power supply cable for the adaptor against the risk of being trodden on, pinched or folded, particularly near the sockets and the connection with the device.
Keep out of the reach of children or pet.
To disconnect the power supply cable, pull on the plug and not on the cord.
If the power supply cable is damaged, stop using the device immediately.

Fetures:

Original Imported with Soshine Protected

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

Sanyo 18650 2600mAh with Protected

Fetures:

Original Imported with Soshine Protected

Quality Lithium Ion rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

PCB Protected against:

Over charge

Over discharge

Over current (short circuit)

Specification:

Sanyo cell 2600mAh 3.7V With Protected

System: Cylindrical Li-ion Battery

Specification: 18650

Nominal Voltage: 3.7V

Capcity: 2600mAh

Dimension:

Diameter-D-18.5(+/- 0.5mm)

Height-H-65.5(+/- 0.5mm)

Diameter-d-5.0(+/- 0.5mm)

Height-h--1.5(+/- 0.5mm)

System: Cylindrical Li-ion Battery

Specification: 18650

Nominal Voltage: 3.7V

Capcity: 2600mAh

Dimension:
Diameter-D-18.6 max
Height-H-68.3 max
Diameter-d-7.5
Weight approx: 125g (2pks)

Protection:

Quality Lithium Ion rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

PCB Protected against:
Over charge (4.275±0.04V)
Over discharge (2.65±0.08V)
Over current (4A)

LiFePo4 battery 15266( IFR CR2) 3.2V 300mAh

Normal voltage: 3.2V

End-off voltage: 2.0V

Normal capacity: 300mAh

Max dimension: 15.1x29.5.0mm

Operating temperature: -10^oC - +60^oC

Storage temperature: -10^oC - +45^oC

Continuous current: 1000mA (max.)

Pulse current: 2000mA (max.)

Max weight: 11.5g

Soshine LiFePO4 RCR123 Battery Protected: 600mAh 3.2V

3.2V 600mAh rechargeable LiFePO4 battery with protected

Can replace for CR123, CR17345, K123A, VL123A, DL123A, 5018LC, SF123A and EL123AP

The voltage of full charge & empty condition is 3.6v & 2.0v respectively

System: Cylindrical LiFePO4 Battery
Specification: 16340
Nominal Voltage: 3.2V
Capacity: 600mAh

Dimension:
Diameter-D-16.4 max
Height-H-35.4 max
Diameter-d-5.9
Weight approx: 16g

Feature:

1) High quality and operating voltage 3.2V LiFePO4 rechargeable battery.

2) Product deion: 16340 LiFePo4 battery with capacity: 600mAh.

3) Light weight, higher energy density, small volume.

4) Longer service life, 1C for Circulation using 1000 charge/discharge Cycle, Capacity above 80%.

5) Low self-discharge.

6) No memory effect.

7) Safer and environmentally friendly.

SOSHINE Brand 18650 Li-ION Battery 3000mAh

Bar Code:

Model: 18650P-3.7-3000

System: Cylindrical Li-ion Battery

Specification: 18650

Nominal Voltage: 3.7V

Capcity: 3000mAh

Dimension:
Diameter-D-18.6 max

Height-H-68.3 max

Diameter-d-7.5

Weight approx: 125g (2pks)

Technical Details
High Capacity: 10400mAh(4*SAMSUNG18650 2600)
Output: 2 USB ports for fast charge(One port 5V/ 1A, the other one 5V/ 2.1A)

Input: 5V/ 0.5-2.1A.(Mini charge time 7 hours)
LCD display time capacity voltage and current .
Intelligent power manage IC, overcharge protection, short circuit protection.
Package includes: 10400mAh External Battery/ 1 USB power wires

Specifications:
Capacity: 10400 mAh
Battery Type: Lithium-ion

Input: DC 5V/ 0.5-2.1A

Universal 5V1.5A Four-Panel 10-WATT Rapid Solar Charger

For iPhone ,Smartphones, Tablets & Other USB Powered Devices

Converting virtually unlimited supply of solar power to much needed battery for your mobile devices such as an iPhone, smart phones, Blackberry and many more compatible USB portable devices while you are on the go or there is a power outage or disaster strikes, the Soshine Solar Charger W10 is a light and compact USB solar charging system that easily fits in your messenger bag or backpack. Measuring 25.5 x 11.6 x 4.2cm when folded and weighing less than 475g, it combines four solar panels totaling 10 watts .

With a built-in 2,000 mAh rechargeable Li-ion battery pack for power storage and current stabilizing, the W10 is sophisticatedly designed and engineered and comes with standard USB port for directly plugging in your cell phones including all generations of iPhones, MP3 players, USB battery/power packs and many other USB compatible mobile devices. If your cell phone comes with a USB charging cord to connect to a computer, then thats all you will need to connect your phone to this USB solar charger, no other charging adapter needed.

LCD Universal Charger

for

Li-ion 3.7V 26650 18650 16340

Li-ion 7.4V 6F22/9V

LiIFePO4 3.2V 26650 18650 16340

NiMH 1.2V C AA AAA

NiMH 8.4V 6F22/9V

Model: H2-V2

Sanyo 18650 2600mAh with Protected

Fetures:

Original Imported with Soshine Protected

Quality Lithium Ion rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

PCB Protected against:

Over charge

Over discharge

Over current (short circuit)

Specification:

Sanyo cell 2600mAh 3.7V With Protected

System: Cylindrical Li-ion Battery

Specification: 18650

Nominal Voltage: 3.7V

Capcity: 2600mAh

Dimension:

Diameter-D-18.5(+/- 0.5mm)

Height-H-65.5(+/- 0.5mm)

Diameter-d-5.0(+/- 0.5mm)

Height-h--1.5(+/- 0.5mm)

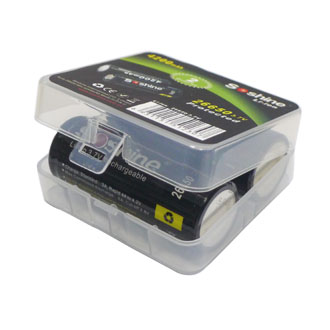

Type:LiFePO4

Nominal capacity: 3200mAh
Nomianl Voltage: 3.2V
Size: Max. 26.25 * 67.5 mm
Core cell weight: 78g
Continuous discharging current: 4A
Burst discharging : 7-8A

Internal impedance: (1kHz AC) 45 mΩ typical
Typical fast charge current: 6A to 3.6V CC/CV
Cycle life at 2C discharge, 100% DOD: over 1,000 cycles
Safety: Excellent abuse tolerance and environmentally friendly

Quality LiFePO4 rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

PCB Protected against:
Over charge

Over discharge

Over current (short circuit)

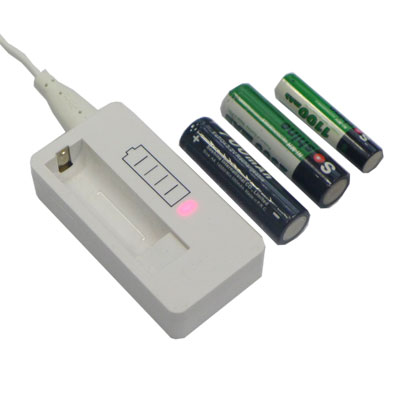

Model:SC-F3

Specifications:

DC IN :5V 1A
Output::500mA @3.2V LiFePO4 14500 10440 battery
1000mA @1.2V Ni-MH AA AAA battery
Charger mode: CC / CV (LiFePO4 Battery) / DELTA V (Ni-MH Battery)
Color: black / white
Size(mm): L74*W38*H18 mm
Weight(g):63/70

Feature:
USB Input

Charge for Ni-MH AA AAA or LiFePO4 14500 10440 Battery

5 LED display
Automatic 1.2V/3.2V battery pack voltage and polarity detection
Quick safe
Auto alert indication for worse battery pack and bad battery

Remark:

Do not disposed of in fire, disassemble, short circuit.

Do not charger Alkaline or Carbon zinc batteries.

Observe polarity

Only charge LiFePO4 14500 10440/Ni-MH AA AAA battery

Charge before use.

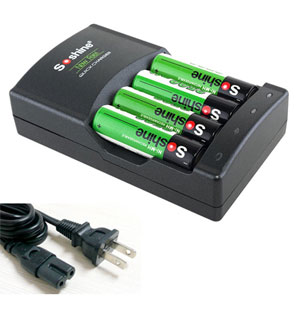

Model :SC-U1

Bar Code: 6951151520517

Charge your digital camera AA and AAA batteries in up one hour. This recharger charges one to four AA or AAA batteries simultaneously. The smart charge cut-off protection stops the process when the battery is full.

Bar Code:6951151520517(AA*4) 6951151520531(Sim)

Specifications:

AC IN:100-240VAC,50~60Hz
DC OUT: 1.5V 2000mA

AA*1 AA*2 , 1000mA AA*3 AA*4, 500mA

AAA*1,AAA*2 500mA AAA*3,AAA*4, 250mA
Charge:1-4pcs AA /AAA Ni-MH/Ni-Cd batteries

Housing material: ABS

Packaging type: Clam shell blister

Packaging material: PET

Dimension(mm):103*63*22

Weight(g):386

Main Features:

4LED display shows charger condition
Microprocessor controlled auto cut off ( -dv detect)
Timer control, double protection (8 hours cut Off )

Over temperature protection (NTC : 55oC cut Off )

Over current and short circuit protection
Defective and bad, non-Rechargeable battery detection
Universal voltage for worldwide use

4 LED indicate:
Red on ------------------Battery Charging
Blue on --------------- Charge 90%-100% complete
Turn off -----------------Stand by without battery in compartment
Loose connections (replace battery);
Polarity reversed (load the battery in right side)
Low voltage less than 0.2V
Red flash (after 5min) ------Non rechargeable battery like alkaline, primary
Bad battery
Temperature >55 degree

Charge time:

This chart is for your reference only .The actually time may short than the chart

Main Features:

4LED display shows charger condition
Microprocessor controlled auto cut off ( -dv detect)
Timer control, double protection (8 hours cut Off )

Over temperature protection (NTC : 55oC cut Off )

Over current and short circuit protection
Defective and bad, non-Rechargeable battery detection
Universal voltage for worldwide use

4 LED indicate:
Red on ------------------Battery Charging
Blue on --------------- Charge 90%-100% complete
Turn off -----------------Stand by without battery in compartment
Loose connections (replace battery);
Polarity reversed (load the battery in right side)
Low voltage less than 0.2V
Red flash (after 5min) ------Non rechargeable battery like alkaline, primary
Bad battery
Temperature >55 degree

Charge time:

This chart is for your reference only .The actually time may short than the chart

Main Features:

4LED display shows charger condition
Microprocessor controlled auto cut off ( -dv detect)
Timer control, double protection (8 hours cut Off )

Over temperature protection (NTC : 55oC cut Off )

Over current and short circuit protection
Defective and bad, non-Rechargeable battery detection
Universal voltage for worldwide use

4 LED indicate:
Red on ------------------Battery Charging
Blue on --------------- Charge 90%-100% complete
Turn off -----------------Stand by without battery in compartment
Loose connections (replace battery);
Polarity reversed (load the battery in right side)
Low voltage less than 0.2V
Red flash (after 5min) ------Non rechargeable battery like alkaline, primary
Bad battery
Temperature >55 degree

Charge time:

This chart is for your reference only .The actually time may short than the chart

It is normal for batteries to warm up while charging. They will cool down after they are charged.
Store batteries in a cool dry place at room temperature.
Rechargeable batteries gradually lose power when store. If they are not used for more than one year, charge the battery complete. but cannot use ,the battery may damaged. Replace a new battery.
Not charging all the way?
1. Gently rub battery ends with a clean pencil eraser or cloth to remove any residue
2.Loose connections between battery and charger, replace battery into the battery compartment, turn the battery until LED turn red.
3.Polarity reversed, load the battery into charger in right side until LED turn red.

Warning:
To avoid personal injury and property damage from, but not limited to, the risk of electric shock or fire:
Charge only rechargeable Ni-MH batteries. Charging any other types of batteries may cause them to leak, rupture or explode.
Do not open battery, dispose of in fire, put in backwards ,mix with used or other battery types or short circuit-may ignite, explode, leak or get hot injury
Use the charger only in dry locations. Keep away from rain, snow or excessive moisture.
Do not operate the charger if damaged
Do not disassemble, modify any part of the charger ,or attempt to use the chargers as power source
Always unplug the charger from outlet before attempting maintenance or cleaning,
This charger is not a toy and should not be used by children or infirm persons without adequate training or supervision.

One year warranty:

This Soshine product is warranted only to the original purchaser upon presentation of proof of purchase, to be free from defects in materials and workmanship for one year from date of original purchase provided that no other repairs, alterations or modifications had been attempted by unauthorized personnel. Not applicable to damage caused by normal wear and tear or misuse. Repair or replacement of charger at Soshine option. For more information, please contact your nearest Soshine sales office.

Not including battery

Specifications:
Input: AC 90-260VAC, 50/60Hz
Output:Li-ion 8.4V 300mA*1 160mA*2
Ni-MH 9.8V 100mA*1 100mA*2
Charger mode:CC / CV (Li-ion Battery)/DELTA V ( Ni-MH Battery)
Colour:white
Size(mm): L91x W61 x H25.5mm
Weight(g): 105/140

Feature:
Charge for 1-2PCS Ni-MH or Li-ion 9V Battery
9.8V/8.4V battery pack voltage and polarity detection
Quick safe
Auto alert indication for worse battery pack and bad battery

Volt: 1.2
Capacity: 900
Chemie: Ni-MH
IEC: HR3
Size: AAA

Weight:49g/88g

This ready to use battery not only holds its charge up to a year but can be used right away.
- Use out of the box
- Holds its charge up to a year
- Up to 6X more photos
- Saves money by recharging
- No harmful chemicals like lead and cadmium

Package:4* 900mAh AAA 1.2V Rechargeable Ni-MH Battery

Weight:12g

Portable USB Mini LED Night Light

Mini LED night light, good for camping, desktop lighting
Power less than 0.6W,LED, low heat
Portable designed, fits neatly in your pocket or purse, or used as a keychain
Compatible with all standard USB device, power bank, mobile charger, computer, laptop...

RAPID CHARGER

For RCR123 CR2

Model:S5-Fe

This charger is an intelligent charger especially designed to charge for 1-2pcs

LiFePO4 RCR123 / RCR2 / 16340 / 17335 3.2/
LiFePO4 15266P(Protection) / 16340P(Protection) 3.2

Specification:

Input:: 12VDC 400mA-600mA

Output: 3.6VDC 300mA*1 300mA *2

Dimensions:L87*W55*H23 mm
Weight：41g

2 pcs Individual LED indicate:

Red on ------------ Battery Charging

Blue on -------------Charge complete

Turn off -------------Stand by

Red-blue flash ---- Non rechargeable Li-ion battery like Lithium, I-MH ,Ni-Cd, Alkaline
Low voltage between <1.80V

Feature

- End-of-charge voltage detection assures the safe and full charge any time

- Short-circuit protection

- Over voltage cut-off protection ----- prevents damage to your battery due to over voltage

- Complete individual channels ------ convenience; prevent 2 batteries charge each other

- Charge Method: CC/CV -------------- Charge battery fully and quickly

- Reverse polarity protection --------- prevent damage to your battery and charger

Charge time:

Not charging all the way?
1 Polarity reversed; Make correct contact for polarity (+ and -) according to the sign in the battery compartment until LED from blue turn red. This charger cannot Polarity Auto Detection

2 Loose connections between battery and charger replace battery into the battery compartment, turn the battery until LED from blue turn red.
3 Use did not rechargeable battery, like Lithium batteries or Ni-MH Ni-Cd battery, this charger only for Lithium Ion batteries, you should change battery.

4 Gently rub battery ends with a clean pencil eraser or cloth to remove any residue, load the battery into charger in right side until LED from blue turn red.

Tips:
It is normal for batteries to warm up while charging. They will cool down after they are charged.
If they are not used for more than one year, charge the battery complete.

Warning:
To avoid personal injury and property damage from, but not limited to ,the risk of electric shock or fire:
Charge only rechargeable Lithium-Ion batteries. Charging any other types of batteries may cause them to leak rupture or explode.
Do not disassemble, modify any part of the charger ,or attempt to use the chargers as power source
Always unplug the charger from outlet before attempting maintenance or cleaning,
This charger is not a toy and should not be used by children or infirm persons without adequate training or supervision.

Model:SC-S5

Quick charger

This charger is an intelligent charger especially designed to charge for 1-2pcs

Soshine RCR123 -3.0V

Li-ion RCR123 / RCR2 / 16340 / 17335 3.6/3.7V
Li-ion 16340P(Protection) 3.6/3.7V

Specification:

Input: 12V DC 300-600mA
Output: 4.2VDC 300mA*1 300mA *2

Dimensions:L87*W55*H23 mm
Weight：151/ 201g

2 pcs Individual LED indicate:

Red on ------------ Battery Charging

Blue on -------------Charge complete

Turn off -------------Stand by

Red-Blue flash ---- Non rechargeable Li-ion battery like Lithium,Ni-MH ,Ni-Cd, Alkaline
Low voltage between <2.0V

Feature

- End-of-charge voltage detection assures the safe and full charge any time

- Short-circuit protection

- Over voltage cut-off protection ----- prevents damage to your battery due to over voltage

- Complete individual channels ------ convenience; prevent 2 batteries charge each other

- Charge Method: CC/CV -------------- Charge battery fully and quickly

- Reverse polarity protection --------- prevent damage to your battery and charger

Charge time:

Specification:

Type: Rechargeable Li-Po
Dimension:(48.5+-0.5)*(26.1+-0.2)*(15.4+-0.3)mm (max)
C5mAh: 630(mini)
C5mA: 650mAh
Nominal Voltage: 7.4V
Capacity:Nominal 650mAh
Minimum 630mAh
when discharged at 0.2C5mA to 5.5V
Recommended Charging Conditions:0.2C5mA charge termination control parameters taper current 0.01C5mA at 8.4V
Service Life: 1000cycles(>=60% C5mAh,0.2C discharge)
Weight: 29g
Charging Voltage: 8.4+/-0.15V
Ambient Temperature Range
Charging : 0-45 centigrade
Discharging: -20 to +60 centigrade
Storage : -20 to +40 centigrade

Soshine C Size Rechargeable Batteries NiMH 5500mAh

Ready to use:low self-discharge C rechargeable NiMH battery
No Memory Effects - NIMH cells does not require draining before a charge
Very long life time and can be recharged up to 1000 times.
Higher Current Capabilities - ideal for high drain applications
High quality C size 5500 mAh high capacity nickel hydride metal (Ni-MH) rechargeable batteries
Longer & More Consistent Runtime
Compatible with all chargers that support NiMH rechargeable batteries Features and Benefits
Can be rapidly charged with smart chargers and universal chargers
12 months warranty.

Specification:
Chemie:Ni-MH
Size:C LR14 UM-2
Model: RTU C5500
Nominal Capacity(mAh): 5500 mAh
Standard Charge: 16 hours @ 550 mA
Rapid Charge: 2.5 hours @ 2750 mA
Nominal Voltage: 1.2V
Dimension: Height 50.5 mm, Diameter 26 mm
Approx. Weight:157g

LCD Universal Adjustable Current Charger
for
Li-ion 3.7V 26650 18650 16340
LiIFePO4 3.2V 26650 18650 16340
NiMH 1.2V C AA AAA
Model: H4

Specifications:
DC IN :12V 2000mA

Output:
1000mA/500mA/250mA*4@ Li-ion 3.7V Battery
1000mA/500mA/250mA*4@ Ni-MH 1.2V Battery
1000mA/500mA/250mA*4@ LiFePO4 3.2V Battery

Charger mode:CC / CV (Li-ion Battery/LiFePO4 Battery)/ DELTA V (Ni-MH Battery)
Colour: black
LCD display

Weight:360g
